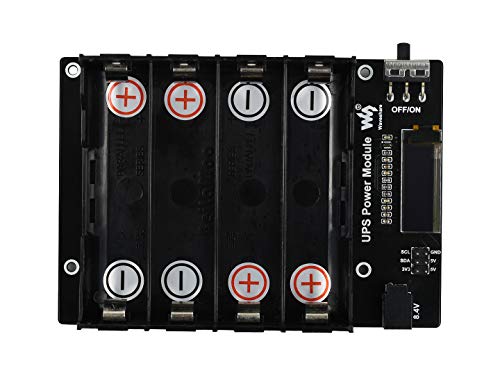

Waveshare Jetson Nano Uninterruptible Power Supply UPS Module Stable 5V Power Output Multi Battery Protection Circuits

Features At A Glance

• I2C bus communication, monitoring the batteries voltage, current, power, and remaining capacity in real time
• 0.91″ OLED for displaying info like batteries voltage, IP address, RAM usage, etc.
• Multi battery protection circuits: over charge/discharge protection, over current protection, short circuit protection, and reverse protection, along with the equalizing charge feature, more safe and stable
• Onboard 5V regulator, up to 2.5A continuous output current
• Batteries warning indicators, easy to check if the battery is connected correctly
• Comes with development resources and manual

Specifications

OUTPUT VOLTAGE:5V

CHARGER:8.4V 2A

CONTROL BUS:I2C

DIMENSIONS:113 × 79mm

BATTERY SUPPORT:18650 Li battery (NOT included)

MOUNTING HOLE SIZE:2.5mm

User Manual:www.waveshare.com/wiki/UPS_Power_Module?amazon

Voer het modelnummer hierboven in om zeker te weten dat dit past.
I2C bus communication, monitoring the batteries voltage, current, power, and remaining capacity in real time
0.91″ OLED for displaying info like batteries voltage, IP address, RAM usage, etc.
Multi battery protection circuits: over charge/discharge protection, over current protection, short circuit protection, and reverse protection, along with the equalizing charge feature, more safe and stable
Onboard 5V regulator, up to 2.5A continuous output current
Batteries warning indicators, easy to check if the battery is connected correctly
